Anderson Power Products

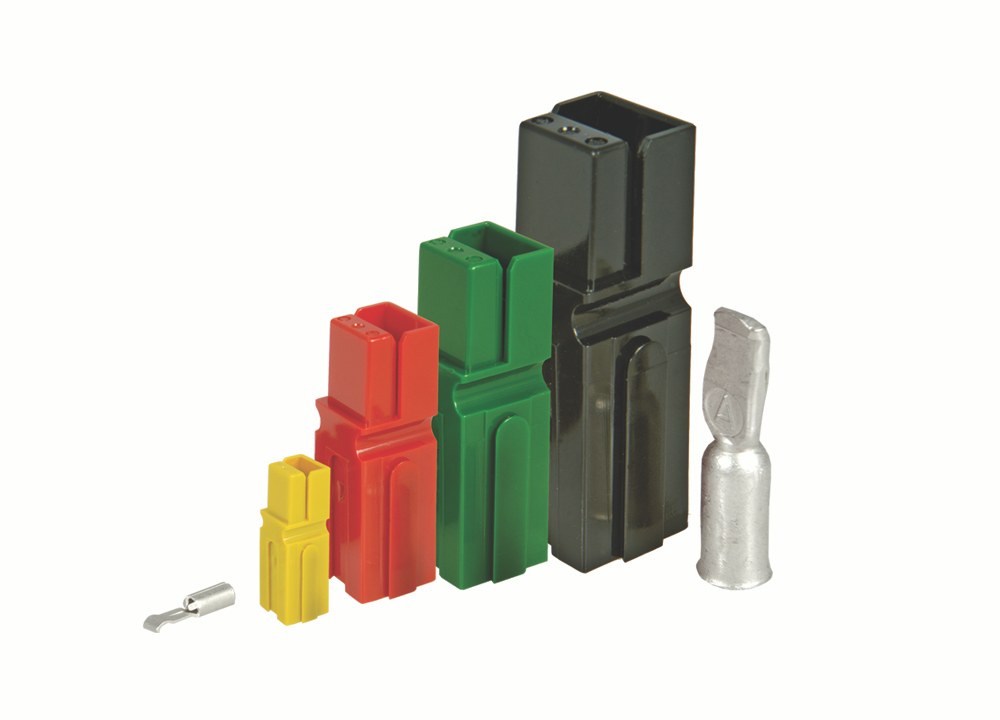

Anderson Power Products Anderson Powerpole Connectors This versatile connector series invented by Anderson Power Products (APP®) meets a wide range of power connection needs. The four housing sizes in the Powerpole® product family can carry a wide range of amperage and wire sizes in the most compact footprint. For currents up to 350A and from wire sizes of #20 AWG (0.75 mm²) to 3/0 (70 mm²). Powerpole® can handle them all! A wide range of colored housing options can be stacked together to create a proven reliable custom connector. These housings can be used with different contacts to create wire-to-wire, wire-to board, or wire-to-busbar connections. The Powerpole® connector combines high quality materials with a cost-effective and innovative design for powerful versatility. FEATURES Flat wiping contact system Allows for minimal contact resistance at high current, wiping action cleans contact surface during connection/disconnection. Interchangeable genderless design Makes assembly quick and easy and reduces number of parts stocked. Silver plated contacts (also offer Tin on 15/45) Offers greatest longevity when using high power, elevated temperature applications. Colored coded housings Help to ensure that connectors are assembled and mated correctly. Molded-in dovetails Secures individual connectors together. Powerpole® pin & socket series connector (PP10/30) Green housing is a visual identification of ground terminal Chemical Resistant Housings available UL94 V-0 housing material Provides security in knowledge that the connector chosen meets strict flammability ratings
