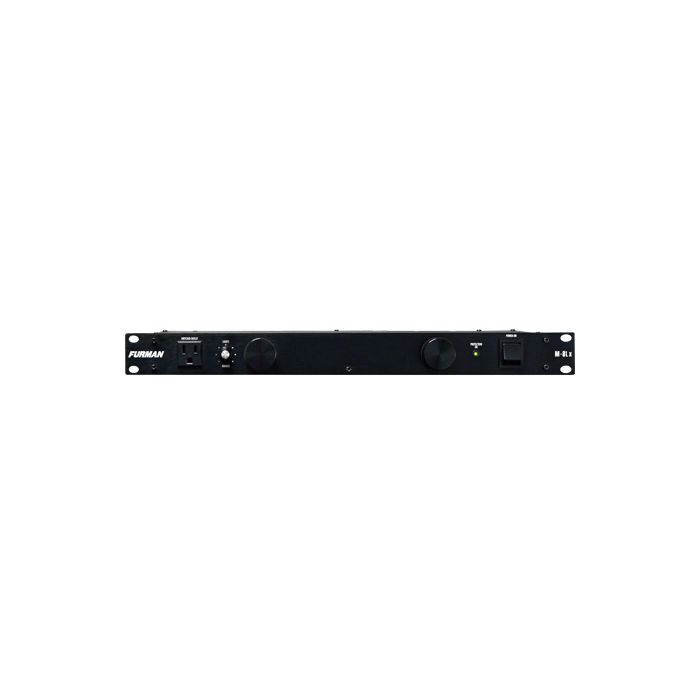

Furman Merit M-8Lx Rack Mount Power Conditioner
Furman Merit M-8Lx Rack Mount AC Power Conditioner
Product Info (Adobe pdf)
Manual (Adobe pdf)
Instrument Rigs
You've got a rack for your effects, preamps, tuner...You're going to plug that into the wall? One big spike and your rig is up in smoke. Furman's M-8Dx standard level surge/spike protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman's standard level RFI/EMI filtration, you'll get a quieter tone without pops, crackles, and the local radio station coming out of your amp. Plus, dual pull-out lamps let you see your rack without turning the house lights on, while the digital voltmeter lets you monitor incoming voltage.
Recording
Can't track down where that noise is coming from? Your mix sounding flat? With Furman's M-8Dx standard level RFI/EMI filtration you'll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman's standard level surge and spike protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. You can even monitor voltage changes, as the digital meter allows you to keep an eye on the incoming line voltage. With a 15A capacity and nine total outlets, it's enough to power your whole home studio.
DJ Equipment
Bars, clubs and other event venues have some of the worst power out there - from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman's M-8Dx standard level protection and filtration keeps the bad stuff out. The dual pull-out front panel lights also let you discreetly see your board and gear without distracting from the show on the dance floor.
Pro Audio
When you're out there gigging, you never know what kind of power you're going to get. The wear and tear on mobile rigs eventually takes it toll - that's why it's smart to plug into Furman's standard level protection and RFI/EMI filtration. It keeps your equipment safe and sounding clean. It keeps your equipment safe and sounding clean, while the digital voltmeter lets you monitor incoming voltage. Whether you're setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.
Communications
Keep your emergency communications gear running at its peak. Don't let dirty power suck the life out of your Amateur Ham Radio equipment. Get cleaner audio reception and better sounding transmissions while protecting your investment.
Features:
- Standard level filtration from radio frequencies and electromagnetic interference
- Standard level of surge suppression
- Dual pull-out rack lights with dimmer control
- 8 rear panel outlets and one front panel outlet
- Sturdy one rack space design
- 15 amp rating, with circuit breaker
- One year limited warranty
Description:
The Furman M-8Lx is the perfect low-cost AC power solution for many rack mount systems. Install an M-8Lx in the top slot of your rack, and the eight switched AC outlets in the rear panel will power up and protect all your equipment up to a 15-amp load.
M-Series conditioners protect your delicate electronic equipment by combining high voltage varistor (MOV) surge and transient suppressors. The fast-acting supression circuit quickly responds and clamps transient voltages to safe levels. An RFI/EMI interference filter works to prevent noise from fluorescent lights, certain dimmers, radio transmitters, and similar sources of “electronic pollution” from contaminating the AC line and from there, leaking into sensitive audio, video, or computer circuits. The M-8Lx is NRTL/TUV listed.
Circuit Breaker:
For safety, a circuit breaker is provided on the rear panel. If the total load on the Power Conditioner (combining all outlets) exceeds the 15A (or 1800 watt limit), the circuit breaker will trip. If this happens, it may be easily reset by pushing in the button. There is no need to replace fuses.
Retractable Lamps:
The M-8Lx includes two pull-out light tubes for rack illumination. For convenience in traveling, the lamps may be pushed in, safely out of the way. When the rack is again ready to use, they pull out easily (up to 2.75 inches, or 7 cm) and may be adjusted to provide optimum illumination for your equipment. The units come supplied with 5 watt night-light bulbs. Cooler-running 4 watt bulbs or even colored Christmas tree bulbs may be substituted, if desired. Replacements are readily available at most hardware stores or almost anywhere household light bulbs are sold, and can be ordered from Furman. Bulbs are easily replaced without removing the unit from the rack by unscrewing the cap on the end of each light tube.
Switches:
The M-8Lx has a convenient master switch for the rear outlets which glows when the power is on. There is a separate “Rack Lights“ switch for the lamps, plus a dimmer control knob which increases the lamps’ brightness. Warranty Information:
All Merit Series Power Conditioners are protected by a limited one year warranty covering manufacturer defects. Warranty service is provided by Furman Sound, Inc.
- Maximum Output Current: 15 amps
- Line Cord: 6 ft., captive, 14 AWG, with 3-conductor Edison plug
- Lamps: Two 120V incandescent bulbs, 4 watts each
- Operating Voltage: 120VAC 60Hz
- Spike Protection Mode: Line to neutral
- Energy Dissipation: 170 joules
- Peak Impulse Current: 12,000 amps
- Maximum Continuous Opterating Voltage: 130 VAC RMS
- Let Through Voltage (@ 125 amps, 8/20uS waveform) 400 volts
- Noise Attenuation: Transverse mode: Greater than 26dB, 200Khz to 10 Mhz
- Dimensions: 1.75” H x 19” W x 7.5” D
- Weight: 5.5 lbs.
- Safety Agency Listing: cTUVus
- Warranty: Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship.
| MPN | M-8Lx |
|---|
