Cardas Audio XLR Chassis / Panel Mount CM F XLR Female

$44.00
SKU
CARDCMFXLR

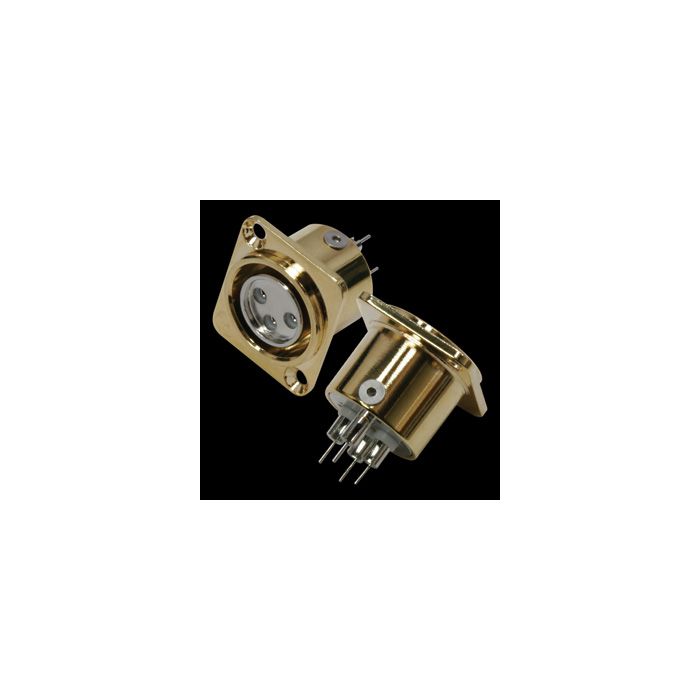

Cardas Audio Chassis Mount CM F XLR Female
Cardas CM F XLR Female Chassis mount connector

Sold Individually.

Well made and attractive Female XLR Connectors for DIY (Do It Yourself) applications.  Cardas logo.

Rhodium contact surfaces. Pure, non- magnetic, eutectic billet Brass, Gold and Rhodium over Silver platings. These connectors have a unique end shielding technique that blocks RF and Clock signals.

The Cardas chassis mount female XLR plug is designed as a replacement for the Neutrik NC3FD-V. High quality PFA dielectric combined with silver and rhodium plate on the pins make this product superior to standard chassis and panel mount XLR's. The body is finished in gold plate and can be mounted from the front or the back, independently from the core. A stainless steel set screw holds the core securely to the body. The pins are designed to mount directly on the PCB or can be soldered by hand.

Plugs can mount in PCB, or be soldered to chassis wire. PCB pins can be removed, making way for solder trough.
More Information
MPN CM F XLR
