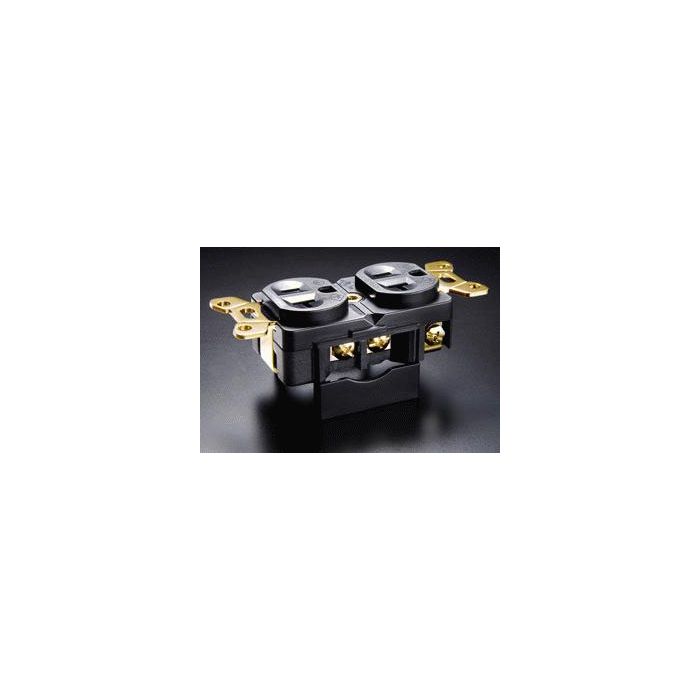

Furutech GTX-D G Pure Copper and Gold Receptacle


GTXDG Pure Copper Receptical with Gold plating

Furutech GTX-D (G) Pure Copper Duplex Receptacle with Gold plating. 20Amp

Furutech's Top-Tier GTX Receptacles

A Furutech power product in every way, manifesting a devotion to best performance in every element of AC and signal transfer. Considering that what you actually hear is, in a very real sense, the direct product of the incoming AC then the final few feet are of prime importance for best performance.

Of course everyone would love to make pure-copper receptacles, but its malleability –lack of stiffness –makes pure copper a poor choice. That’s why you’ll find phosphor bronze or brass in some receptacles. Furutech’s intense engineering scrutiny has resulted in an industry-first, a technique allowing us to use special Furutech 24k gold plated a(Alpha) pure copper conductors strengthened and sprung by our innovative nonmagnetic Stainless Steel Conductor Spring System that keeps a firm grip yet won’t damage male connector blades or their plated surfaces. Even the screw-down pressure plates are curved to maximize contact area. The GTX receptacle can be summed up in a word; virtuoso!

Technical Data:

Gold-plated a (Alpha) Pure Copper Conductor (0.8mm)

Nonmagnetic stainless conductor spring system

Body material: Nylon/fiberglass with piezo-ceramic and carbon damping material

Cover material:Polycarbonate

Parts set with nonmagnetic 2.0mm-thick stainless brace plate

Specified for wire diameters of 4mm (set screw)

Dimensions: 104.0 mm (L) x 47.2 mm (W) x 28.0 mm (H)

Total attention to detail and build quality extends right down to a specially designed patent-pending conductor pressure plate (see below) that increases contact area.

Furutech spade terminal FP-209-10 recommended for 10 AWG wire
More Information
UPC 4582237534269
EAN 04582237534269
